As your one stop solution for your solvent removal, ROTAVAP® provides the highest standard in evaporation technology. Our Rotary Vacuum Evaporators are designed for high-purity concentration, crystallization, and drying—processes absolutely critical to success in pharmaceutical, chemical, and natural product fields. Every unit, regardless of capacity (from 1 L to 50 L), is manufactured by Kshitij Innovations with proprietary, in-house precision.

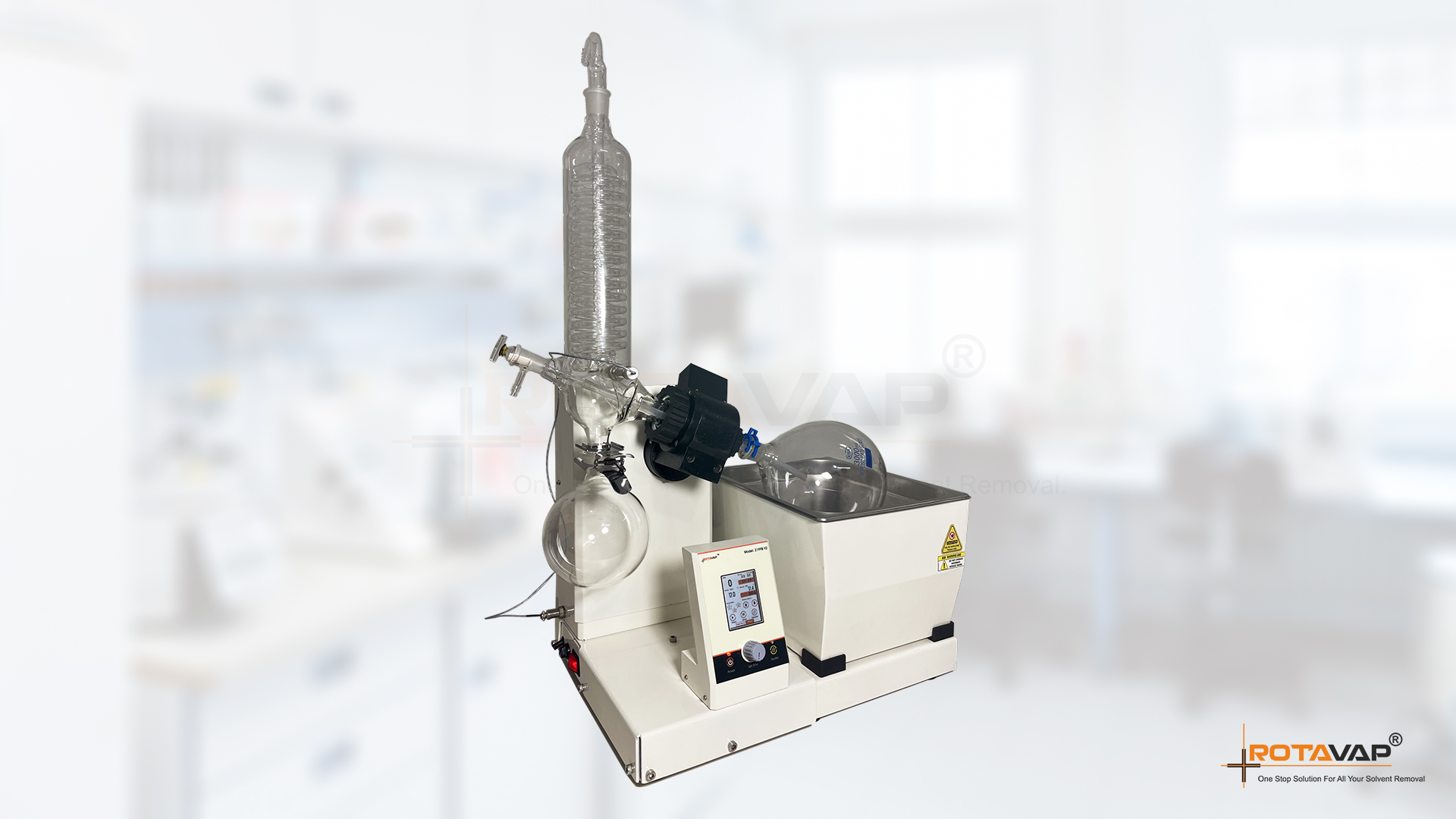

Experience the new benchmark in solvent recovery with the ROTAVAP® 2199B–V2 Rotary Vacuum Evaporator. As your definitive one stop solution for your solvent removal, this advanced system combines proprietary CNC precision manufacturing from Kshitij Innovations with cutting-edge digital control.
The 2199B–V2 model is engineered for researchers and producers who demand repeatable accuracy, simplified operation, and guaranteed safety. Its intuitive touch screen and intelligent automation features eliminate manual guesswork, ensuring you achieve the purest results, whether concentrating heat-sensitive APIs or preparing extracts for Ayurveda Usage.
The ROTAVAP® 2199B–V2 integrates technical innovation with essential safety protocols, making it the most intelligent Rotary Vacuum Evaporator in its class.
Digital RPM () and precise Water Bath Controls guarantee a consistent environment. Vapor Temp. Reading provides real-time feedback, ensuring accurate method repeatability and protecting sensitive samples.
The One Press Electronic Lift simplifies flask handling, while the Auto Lift when Test Completes removes the flask from heat. This automation prevents overheating, safeguarding your sample and glassware.
Built with in-house CNC Turning Centres, our commitment to standard design ensures superior quality and low failure rates. We offer an optional 2 years warranty on the proprietary Teflon Seal* for guaranteed performance.
Model | 2199B-V2 |
Lift Type & Stroke | Electronic & 95 mm |
Rotation Speed | 20 – 280 (± 2 RPM) |
Timer | 99:59 (100 hrs.) |
Display | 2.8″ Colour Touch Screen |
Temperature | Ambient to 250°C (Acc. ± 2°C) |
Keypad | Soft Touch |

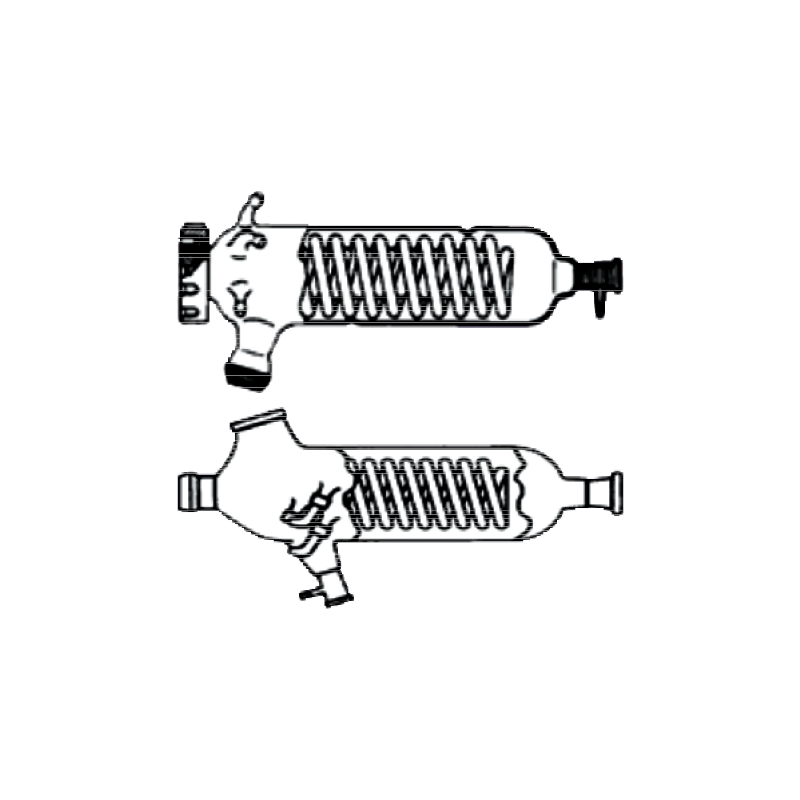

Condenser | Horizontal or Vertical |
Suitable Flask | 50ml to 3000ml |
Bath Capacity | 5 Ltr. & Adjustable To Fit Suitable Flask Size |
Drive System | Dc Motor |
Power Supply | 220 V ± 10%, 50 Hz |
Dimensions (approx.) | 635mm x 385mm x 940mm |
Weight (approx.) | 35.725 Kg |
