ROTAVAP® – Model No. 2198-V

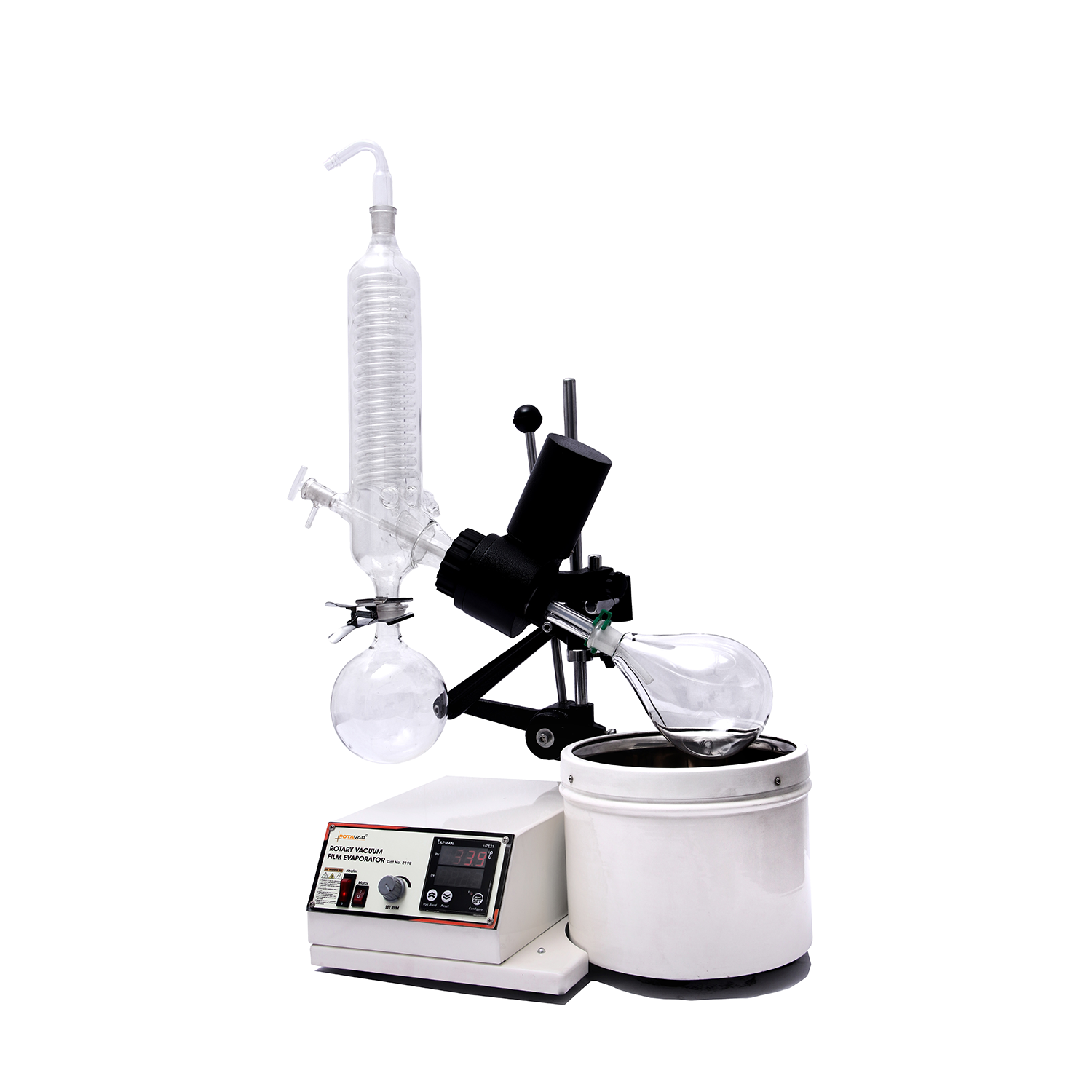

The ROTAVAP® 2198-V is a high-performance vertical distillation system engineered for precision and durability. This technology comes in handy to separate solvents in a mixture with maximum efficiency, making it an essential tool for demanding laboratory environments.

Unlike standard units, our product provides an exceptionally high bath volume of 4L, offering superior thermal stability and the capacity to handle larger batches without compromising on precision.

Keeping technical intricacies in mind, the 2198-V has been designed to make it available for a diverse range of organic, pharmaceutical, F&B, chemical, and analytical labs. Manufactured by Kshitij Innovations using in-house CNC precision, this model is a low-maintenance, one-stop solution for your solvent removal needs.

Features at a Glance

3000ml. Flask Range
Adjustable Water Bath
Manual Jack Assembly
7 Segment Digital Display
Digital Temp. Controller

*Product design & specification subject to change without any notice due to continuous development process

Technical Specifications

Model 2198 V xL
Rotation Speed 20 – 280 (± 2 RPM)
Timer NA
Display 7 segment (Temp.)
Temperature Ambient to 180°C (Acc. ± 2°C)
Keypad NA
Condenser V = Vertical
Boiling Flask x = 1L, 2L, 3L
Bath Capacity 4 Litre
Drive System DC Motor
Power Supply 220 V ± 10%, 50 Hz
Dimensions (approx) 815 mm x 408 mm x 890 mm
Weight (approx) 19.525 Kg
